4mm2 single-core DC solar cable 50m - Black

#2:CABLE4-1-50 Cables - DC Cables
#3: *50m* of 4mm2 Solar PV DC Cable

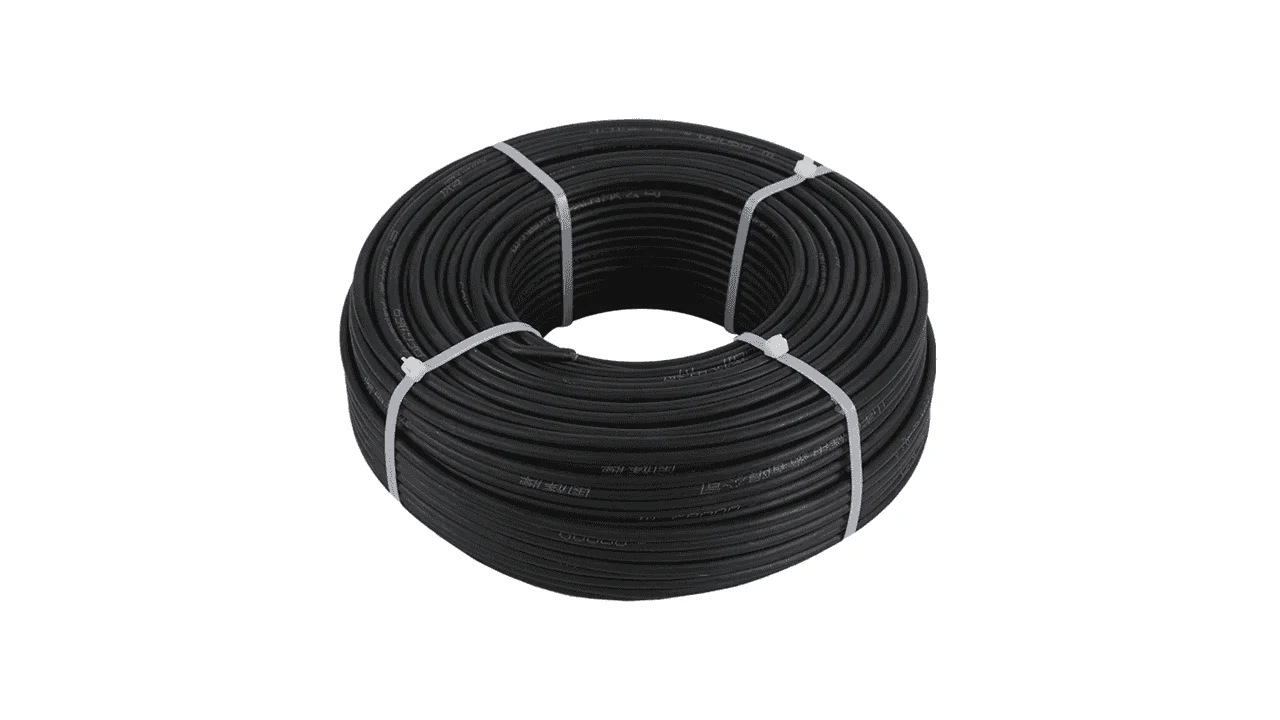

50m H1Z2Z2-K Certified 4mm² Single-Core Black Solar DC Cable

Ensure safe and reliable energy transmission in your photovoltaic (PV) system with this 50m H1Z2Z2-K certified 4mm² single-core black solar cable. Designed for the DC side of solar installations, this high-quality cable meets the latest European standards for solar PV applications.

---

Key Features

• Certified H1Z2Z2-K Cable: Complies with EN 50618, the harmonised standard for solar PV DC cables

• Durable Construction: Flexible tinned copper conductor (Class 5) for easy handling and reliable connections

• Halogen-Free Insulation and Sheath: Cross-linked flame-retardant compounds reduce smoke and toxicity

• High Voltage & Temperature Rating: Rated for up to 1.5kV DC between conductors and earth, and tested to 11kV AC 50Hz. Operating range: -40°C to +90°C

• Length Labelled: 50m roll clearly marked for easy installation planning

---

H1Z2Z2-K Photovoltaic Cable Construction

• Conductor: Flexible tinned copper (Class 5)

• Insulation: Halogen-free cross-linked compound

• Outer Sheath: Halogen-free, flame-retardant cross-linked compound

This cross-linked solar cable offers a thicker wall than the older PV1-F type, providing extra durability and safety for residential and commercial solar installations.

---

Why Choose This Solar Cable?

• Compliant with Latest EU Standards: Guarantees performance and safety in PV systems

• Flexible & Easy to Install: Ideal for rooftop solar or ground-mounted systems

• Long-Lasting & Reliable: Suitable for outdoor DC applications with minimal energy loss
