6mm2 single-core DC cable 25m - Black

#2: CABLE6-1-25 Cables - DC Cables

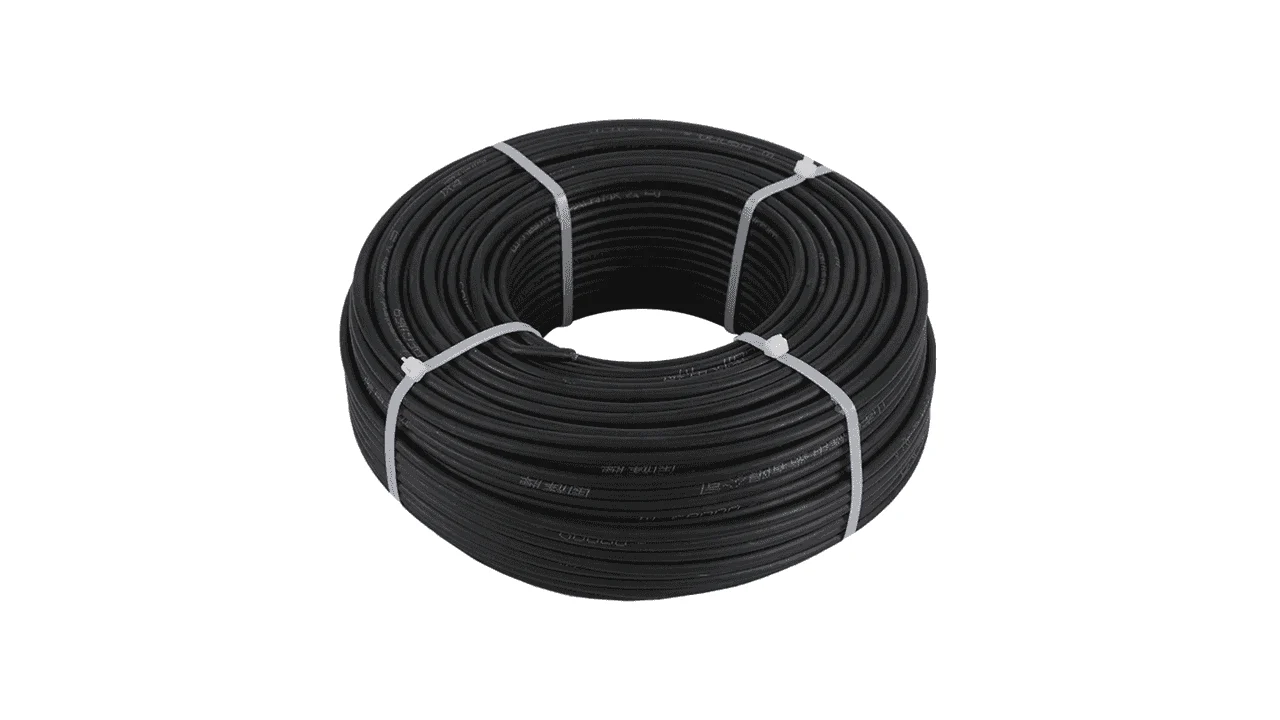

25m Solar DC Cable – H1Z2Z2-K Certified (Black, 6mm²)

This 25m solar cable is manufactured to the latest European Standard EN 50618, making it ideal for use in Photovoltaic (PV) systems. Specifically designed for DC installations with a nominal DC voltage of up to 1.5kV between conductors and not exceeding 1.8kV, it ensures durability, reliability, and compliance with the highest safety standards.

The cable is low smoke zero halogen (LSZH), with a flexible tinned copper conductor, and features cross-linked insulation and sheathing for superior protection against heat, fire, and mechanical stress.

---

Features

• H1Z2Z2-K Photovoltaic Cable Construction

  • Flexible tinned copper conductor (Class 5)

  • Halogen-free, cross-linked insulation

  • Halogen-free, flame-retardant outer sheath

• Tested to 11kV AC 50Hz for safety and durability

• Wide operating temperature range: -40°C to +90°C

• Double-insulated for extra safety compared to older PV1-F cables

---

Specs

• Length: 25m

• Cross Sectional Area: 6mm²

• Colour: Black

• Cores: 1 (Single-core)

• Weight: 1.87kg

• Max Current: 41A

• Max Voltage: 1,800V

---

⚡ This certified solar cable ensures long-term performance and safety for all your PV system installations.
