PylonTech US3000C 3.5kWh Li-Ion Solar Battery Storage D.O.D of 95%

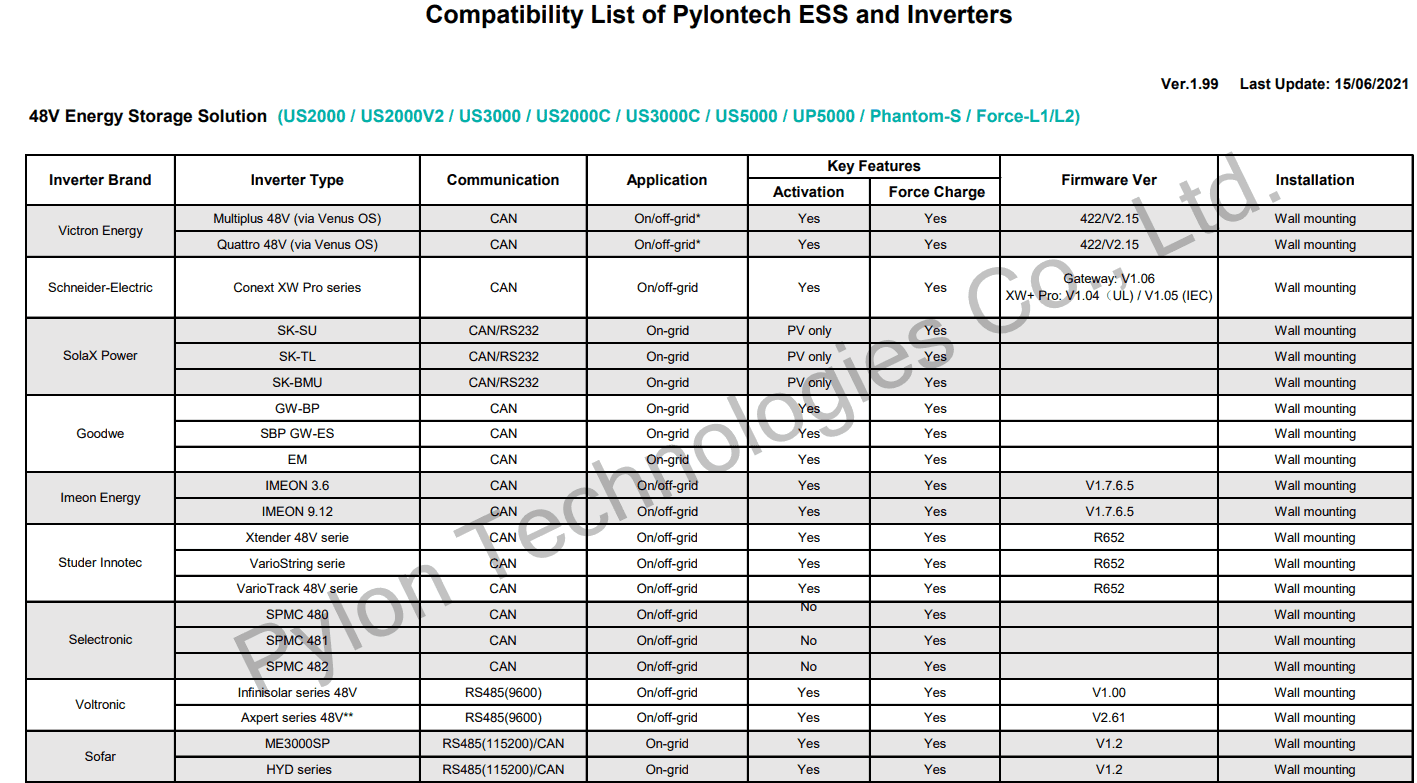

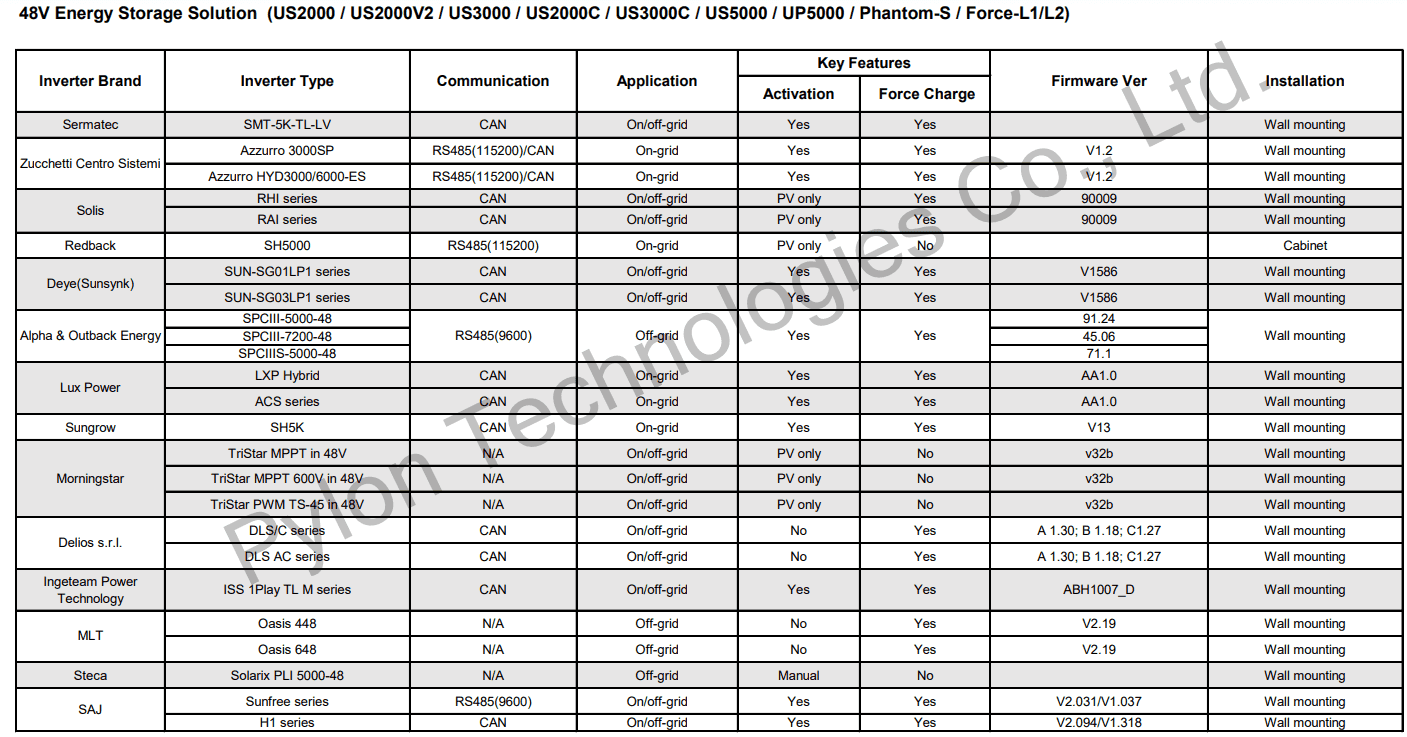

Please note that US2000/C, US3000/C & US5000/1C are all compatible with each other.

To view our full range of Pylontech batteries visit our collection page here.

#2: PYLON-US3000C


US3000C Datasheet

US3000C Installation Manual

US3000C Warranty

Pylontech US3000C HESS Lithium Battery – 3.5kWh High-Performance Energy Storage

The Pylontech US3000C is a next-generation 3.5kWh LiFePO4 home energy storage system (HESS), designed for UK residential and commercial solar installations. Featuring battery-to-battery connecting cables included as standard, the US3000C offers enhanced firmware, increased operational logic (0.8C to 1.0C), and a 95% depth of discharge (DoD) for maximum usable capacity.

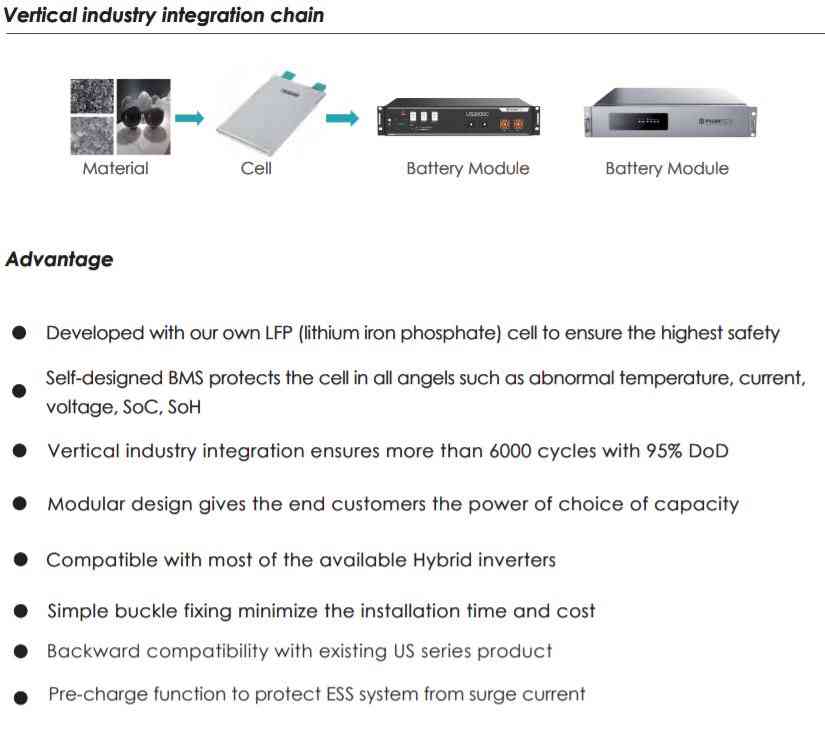

Developed with Pylontech’s proprietary lithium iron phosphate cells, the US3000C delivers high safety, long life, and reliable performance. Its self-designed Battery Management System (BMS) protects against abnormal temperature, current, voltage, state of charge (SoC), and state of health (SoH).

---

Key Features

High Capacity & Performance

• Nominal Capacity: 3.5kWh

• Depth of Discharge (DoD): 95%

• Single Module Power Output: Up to 3.5kW* (*dependent on inverter/charger, typically 1.8kW sustained)

• Long cycle life of 6,000 cycles

Modular & Expandable Design

• Up to 16 units can be connected in parallel for large-scale energy storage

• US3000C can expand an existing US3000 battery bank (must act as the master battery)

• Gives customers flexibility to scale system capacity

Safety & Reliability

• Developed with high-quality lithium iron phosphate cells for enhanced safety

• Intelligent BMS protects against temperature, current, voltage, SoC, and SoH anomalies

• Built-in pre-charge function protects ESS systems from surge currents

Easy Installation & Compatibility

• Compact and stylish design fits comfortably in home environments

• Simple buckle fixing minimises installation time and cost

• Compatible with a wide range of hybrid inverters commonly used in the UK

---

Technical Advantages

• Enhanced firmware and operational logic from 0.8C to 1.0C

• Battery-to-battery connecting cables included for easy integration

• Modular design supports scalable energy storage for homes and commercial properties

---

Why Choose Pylontech US3000C?

• High-capacity, reliable, and safe lithium battery for UK installations

• Scalable modular system for flexible energy storage solutions

• Compatible with numerous hybrid inverters

• Long cycle life and 95% DoD for maximised usable energy

• Simplifies installation with included cables and easy mounting

---

Invest in the Pylontech US3000C 3.5kWh HESS battery for a safe, scalable, and high-performance energy storage solution for your UK home or commercial property.

To extend the warranty you have to register here: http://en.pylontech.com.cn/service/support
