Renusol Console+ bucket for flat roof or ground - including elongation rails - Max module length: 1550-2150 mm

#2: REN-520075-K
#3: 2089

Renusol Brochure

Renusol Datasheet

Renusol ConSole+ 5200 75 K – Ballasted Flat Roof Mounting System

The Renusol ConSole+ 5200 75 K is a reliable and cost-effective mounting solution for PV modules on flat roofs and ground-mounted systems. Designed with a 15° tilt angle, it ensures optimal energy generation while avoiding roof penetration, making it ideal for commercial and residential applications.

---

Key Features

• Tilt Angle of 15° – improves solar yield on flat surfaces.

• Non-Penetrative Mounting – no damage to roofing surfaces, making it suitable for up to 5° roof pitch.

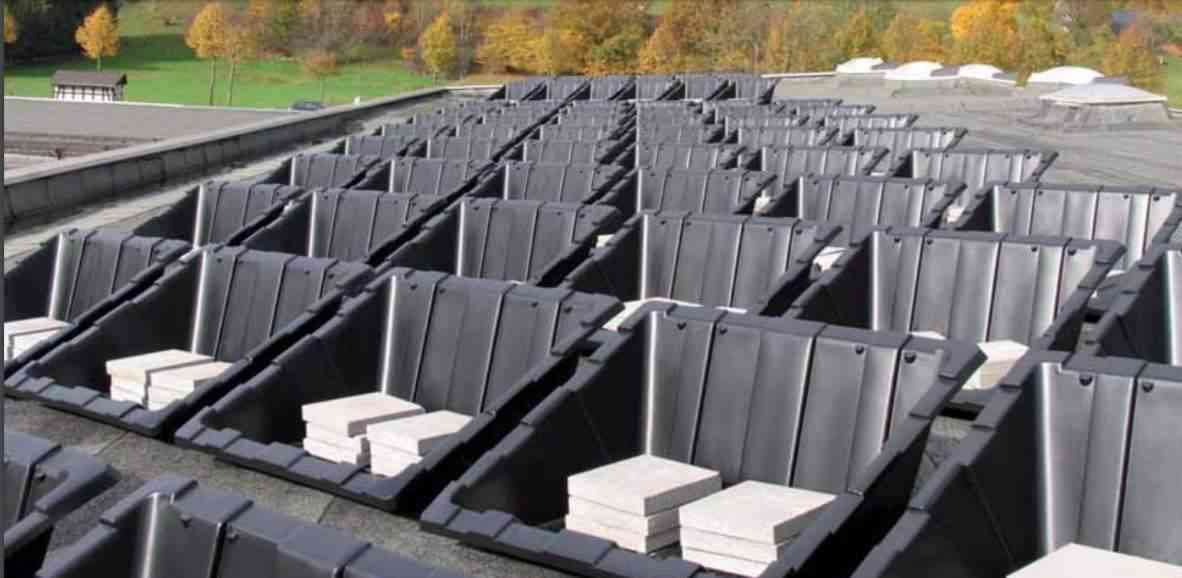

• Ballasted Stability – weighed down using gravel, paving slabs, or similar ballast to resist wind and snow loads.

• Universal Fit – compatible with most framed PV modules within the supported dimensions.

• Durable Materials – constructed with HDPE, aluminium, and stainless steel for long-lasting performance.

⚠️ Note:

• Minimum order: 4 units


---

Technical Data

• Colour: Black

• Material: HDPE, Aluminium & Stainless Steel

• Suitable for: Flat-roof and ground-mounted installations

• Tilt Angle: 15°

• Max Module Length: 1550 – 2150 mm

• Hole Gap (Width): 895 – 1014 mm

• Hole Gap (Length): 690 – 1180 mm

---

Contents Included

• 1 × 500075 ConSole+

• 2 × 400005 ConSole U-Profile 1035 mm

• 4 × 900027 Hexagon Screw DIN933-M6x20 A2-70

• 4 × 900028 Washer DIN9021-6,4-A2

• 4 × 900029 Self-locking Hexagon Nut DIN985-M6-A2

• 4 × 900106 ConSole Clip

• 4 × 900115 Hexagon Screw DIN7504-ST5,5x25-A2-SW8

---

Why Choose Renusol ConSole+?

The Renusol ConSole+ 5200 75 K provides a simple, reliable, and durable way to mount solar modules on flat roofs without drilling or penetration. By using ballast for stability, it ensures a secure installation that adapts to different site conditions while protecting roof integrity.
