SolaX X3 RetroFit AC Coupled Battery 3ph Inverter 8kW

#2: X3-FIT-8
#3: 4748

Solax X3 8kW Inverter Data Sheet

Solax X3 8kW Inverter User Manual

Solax X3 8kW Inverter Warranty

Solax X3 Inverter G99 Certification

SolaX X3-FIT Series 3-Phase AC Coupled Hybrid Inverter

Product Overview

The SolaX X3-FIT Series is a fourth-generation, 3-phase AC coupled hybrid inverter designed for maximum solar energy utilisation. This retro-fit inverter directs excess solar energy into your battery for later use and can act as a backup power supply during grid outages, sending stored energy back to your home.

---

Key Features

Virtual Power Plant (VPP) Function

• Supports VPP integration for smart energy management

Emergency Power Supply (EPS)

• Switchover time <10ms

• Provides up to 150% output for 60 seconds during power loss

Flexible Energy Management

• Max. 110% nominal apparent AC power

• Flexible peak shaving for optimised energy use

• Optional three-phase unbalanced output

Connectivity

• Compatible with WiFi V2.0 for SolaX Cloud monitoring

• WiFi stick required for remote monitoring

---

Installation Notes

• For G100 applications, a software update is recommended

• Recommended use with SolaX CHINT three-phase CT energy meter

• Collections are not permitted due to health & safety regulations

---

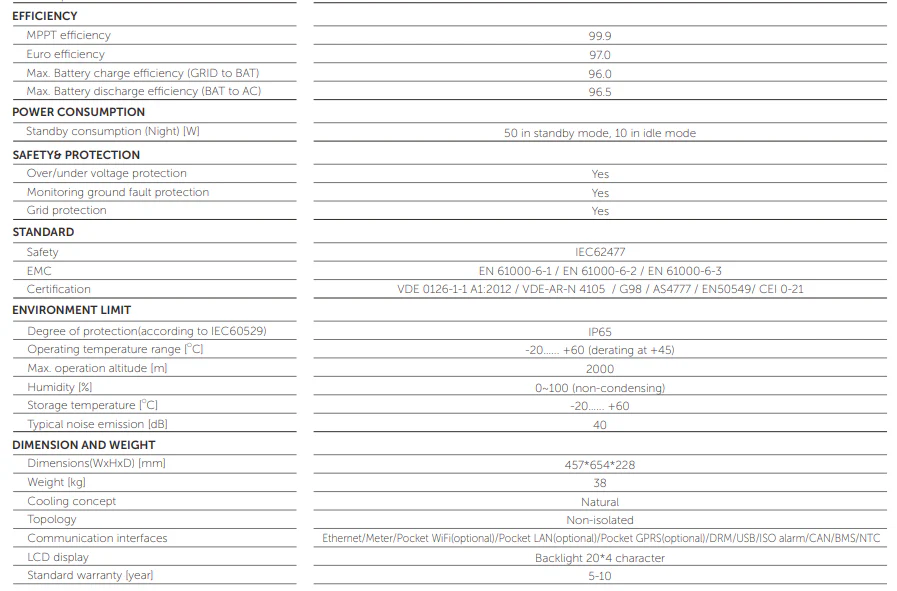

Technical Specifications

AC Attributes

• Max power: 8,800 W

• Max current: 12.9 A

• Number of phases: 3

System

• Max efficiency: 98%

• IP rating: IP65

Dimensions & Weight

• Dimensions (H x W x D): 503 x 503 x 199 mm

• Weight: 30 kg
