Solis 30kW S5 3 Phase Triple MPPT - DC

#2: SOL-S5-GC30K-DC

Solis 30kw Data Sheet

Solis 30kw User Manual

Solis 30kw Warranty

Solis 30kw G99 Certification

Solis S5-GC30K 30kW Three Phase Grid-Tied Inverter

The Solis S5-GC30K three-phase grid-tied inverter delivers exceptional performance and efficiency for large-scale commercial and industrial solar installations. Built with advanced MPPT technology and robust safety features, this inverter ensures maximum energy harvesting and long-term reliability.

---

Key Features

• High Efficiency: Maximum efficiency up to 98.5% for superior energy conversion

• Wide Voltage Range: Ultra-low start-up voltage of 180V and max PV input voltage of 1100V

• 3 MPPT Design: With 2 DC inputs per MPPT, reducing string mismatch and optimising output

• Smart Monitoring: Intelligent monitoring with Smart I-V Curve Diagnosis

• Advanced Safety:

  • Integrated AFCI (Arc-Fault Circuit Interruption)

  • Type-II surge protection for both DC & AC

  • DC reverse-polarity protection

• Durable Construction: IP66-rated for indoor or outdoor installation

• Remote Management: Register via SolisCloud for remote upgrades and system control

• Certified Performance: SA: NRS-097-2-1 certified for compliance

---

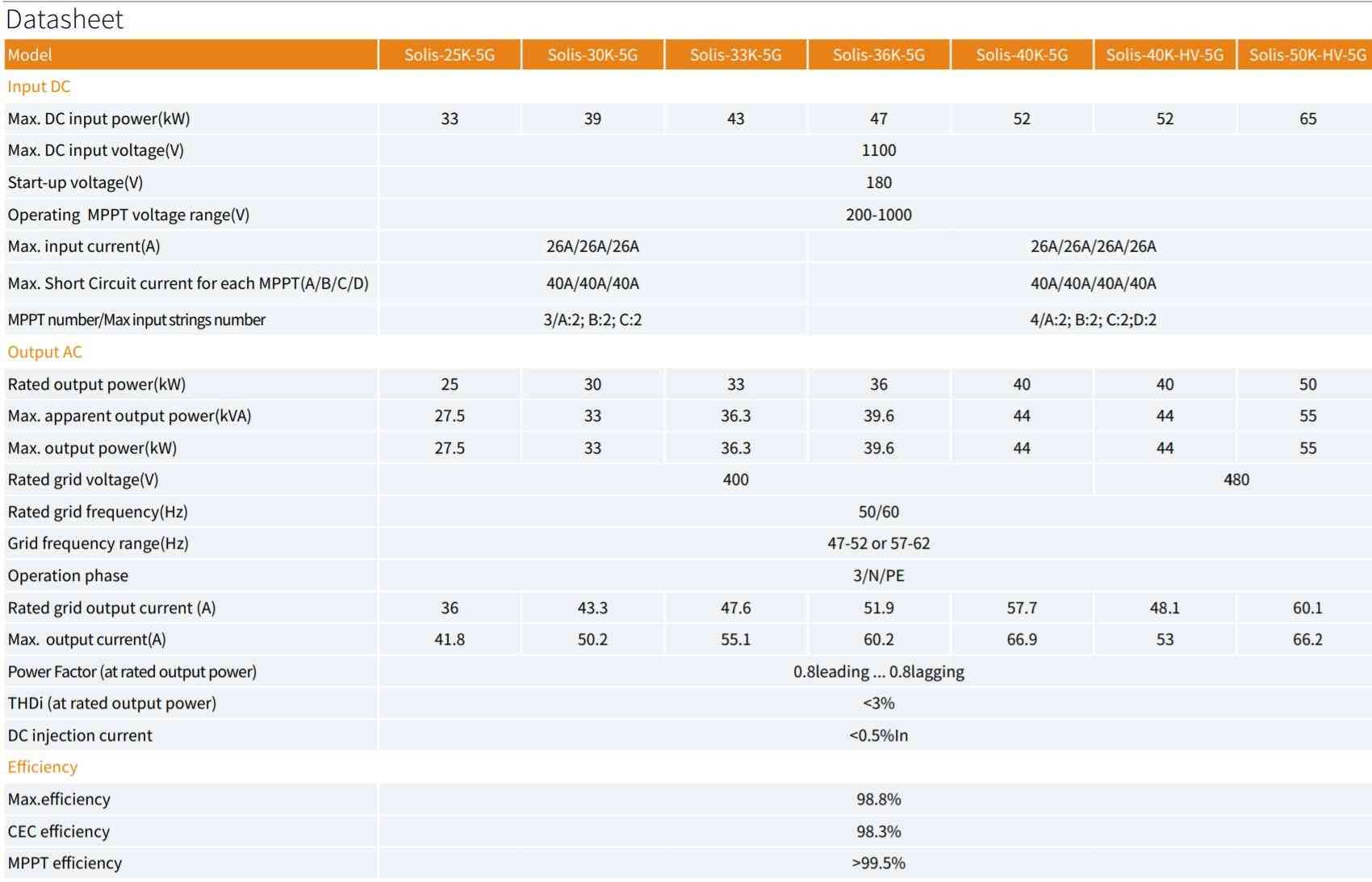

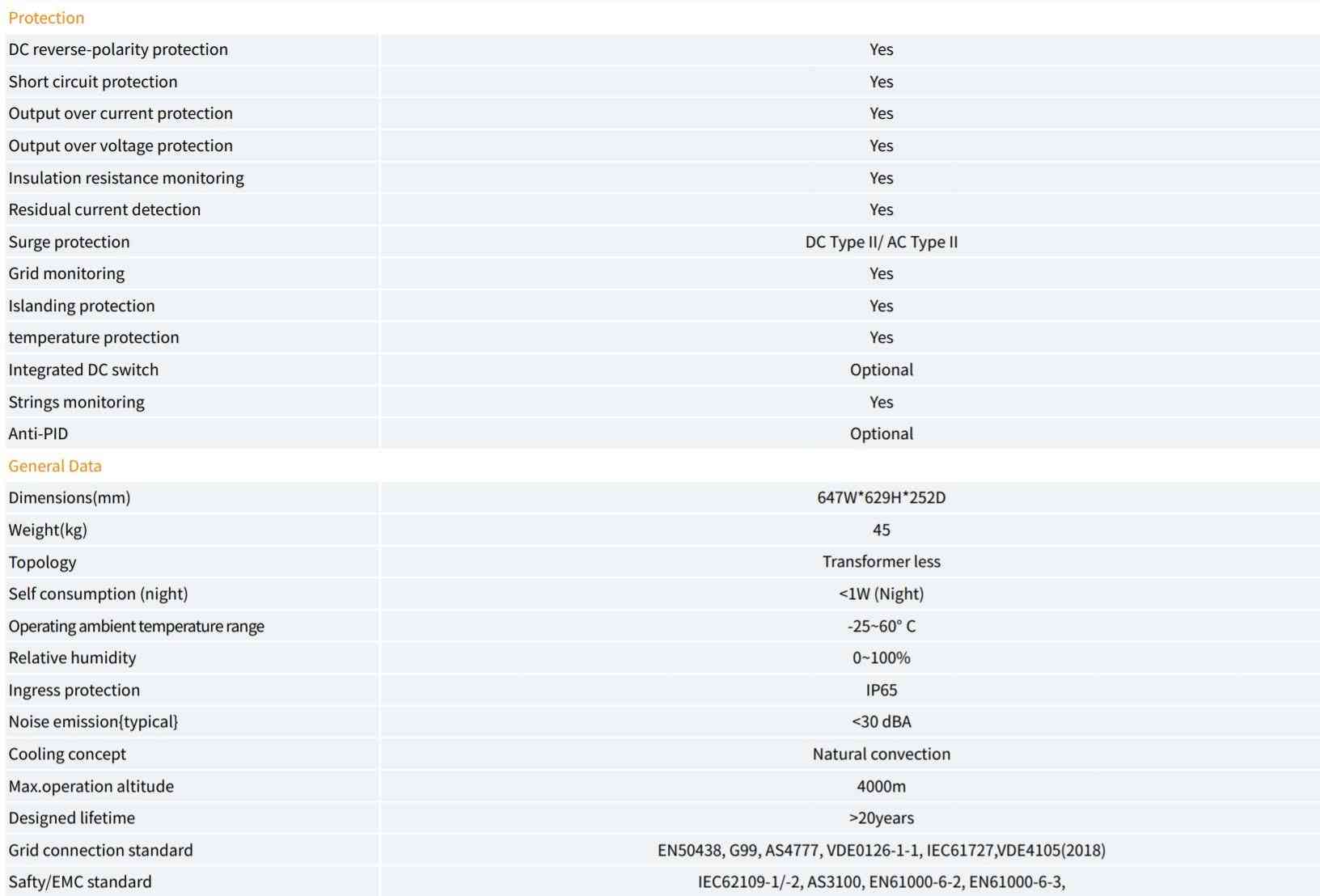

Technical Specifications

• Part No: SOL-S5-GC30K-DC

• Rated Power: 30,000 W

• Phases: 3

• Weight: 44 kg

• Max DC Power: 45,000 W

• Max AC Power (5 Minutes): 33,000 W

• Surge AC Power (1 Second): 33,000 W

• MPPT Voltage Range: 200 V – 1,000 V

• DC Startup Voltage: 200 V

• Max Input Voltage: 1,100 V

• Max DC Current: 96 A

• Max DC Inputs: 6 (MC4 connectors included: 12)

• Euro Efficiency: 98.1 %

• Transformer: None (transformerless design)

• MPPT Quantity: 3

• Integrated DC Switch: Yes

• Warranty: 5 years

---

Why Choose the Solis S5-GC30K?

✔️ Designed for large-scale commercial PV systems
✔️ High-yield inverter with advanced MPPT tracking
✔️ Built-in protection for safer, more reliable operation
✔️ Future-ready with remote monitoring and updates

---

💡 The Solis S5-GC30K inverter is the perfect balance of efficiency, reliability, and scalability for professional solar projects.
