Solis 3.6kW on grid Solar Inverter 6S

#2: SOL-3.6-MINI-S6-DC Inverters - Main Units

#4: S6-GR1P3.6K-M-DC

Solis Inverter 3.6kW Data Sheet

Solis Inverter 3.6kW Manual

Solis Inverter 3.6kW Warranty

Solis Inverter 3.6kW G100 Certificate

Additional 5 year warranty

Solis Mini 6S 3.6kW Single-Phase Solar Inverter – Compact & Ultra-Efficient



Why Choose the Solis Mini 6S 3.6kW Inverter?

The Solis Mini 6S Series 3.6kW inverter is the ideal choice for UK residential solar installations. It combines high efficiency, smart grid compatibility, and a compact design to deliver maximum solar energy performance with minimal noise. Perfect for homes looking to optimise solar energy without compromising space or comfort.

---

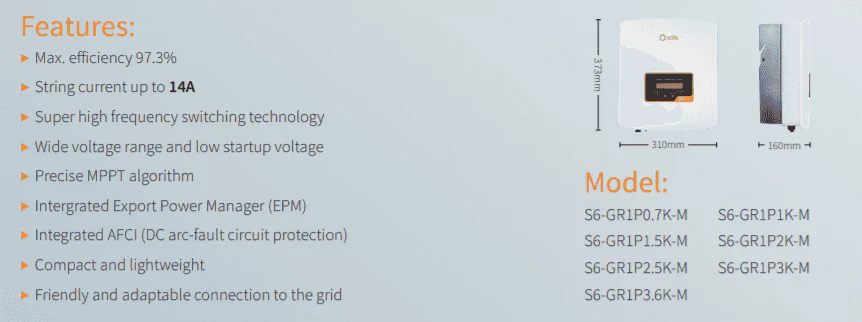

Key Features

• Exceptional Efficiency:
  Achieves up to 97.3% maximum efficiency and 96.8% European efficiency for better energy savings.

• Compact & Lightweight Design:
  Weighing only 7.7 kg, it’s easy to install in small spaces.

• Whisper-Quiet Operation:
  Fanless design ensures less than 20 dBA noise, making it perfect for residential areas.

• Smart Grid Ready:
  Features DRM (Demand Response Mode) and export power control to meet UK grid regulations.

• Advanced Safety:
  Built-in AFCI protection and integrated DC switch for emergency shutdown and safer maintenance.

• Wide Voltage Range:
  Ultra-low start-up voltage of 90V with a maximum PV input voltage of 600V.

---

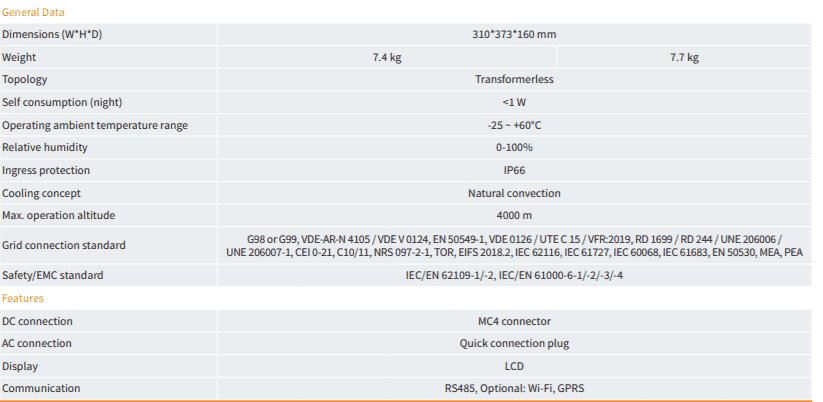

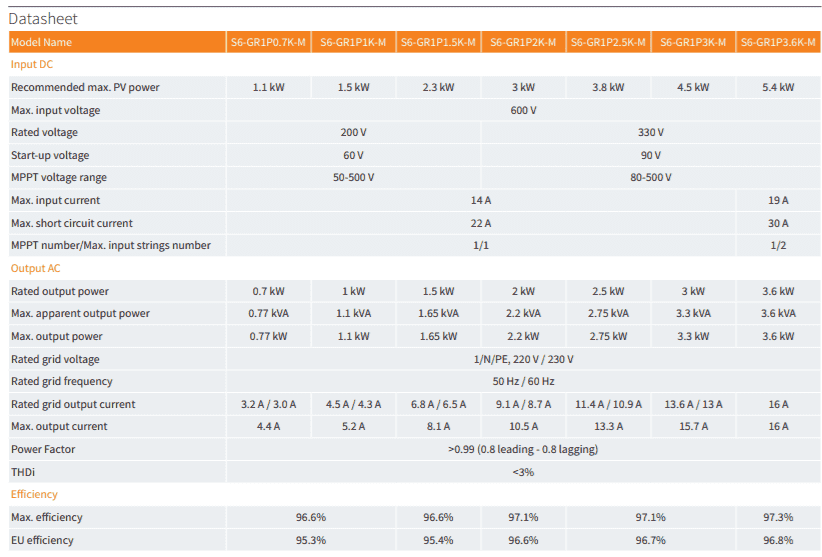

Technical Specifications

• Rated Power: 3,600 W

• Max DC Power: 5,400 W

• MPPT Voltage Range: 90 V – 500 V

• Max Input Voltage: 600 V

• DC Start-Up Voltage: 90 V

• Max DC Current: 19 A

• MPPT Quantity: 1

• Max DC Inputs: 2

• Euro Efficiency: 96.8 %

• Weight: 7.7 kg

• Integrated DC Switch: Yes

---

Warranty Options

• Standard Warranty: 5 Years

• Optional Extended Warranty:

  • +5 Years (Total 10 Years)

  • +15 Years (Total 20 Years)

---
