SunSynk 3.6kW AC ECCO 7kWp Hybrid Inverter

Take control of your energy with the SunSynk 3.6kW AC ECCO Hybrid Inverter, a next-generation super hybrid system designed for efficiency, flexibility, and smart energy management. Compatible with Lithium-ion and Lead Acid batteries, this inverter integrates seamlessly with Octopus Agile, Flux, and Go for real-time energy optimisation.

---

Key Features

• High Efficiency Hybrid Inverter: Rated AC output of 3.68kW with a 7kW MPPT, ideal for generating energy even during winter months

• Dual MPPT Design: Maximises energy harvest from solar arrays

• Battery Compatibility: Supports up to 50kWh of connected Lithium-ion or Lead Acid batteries

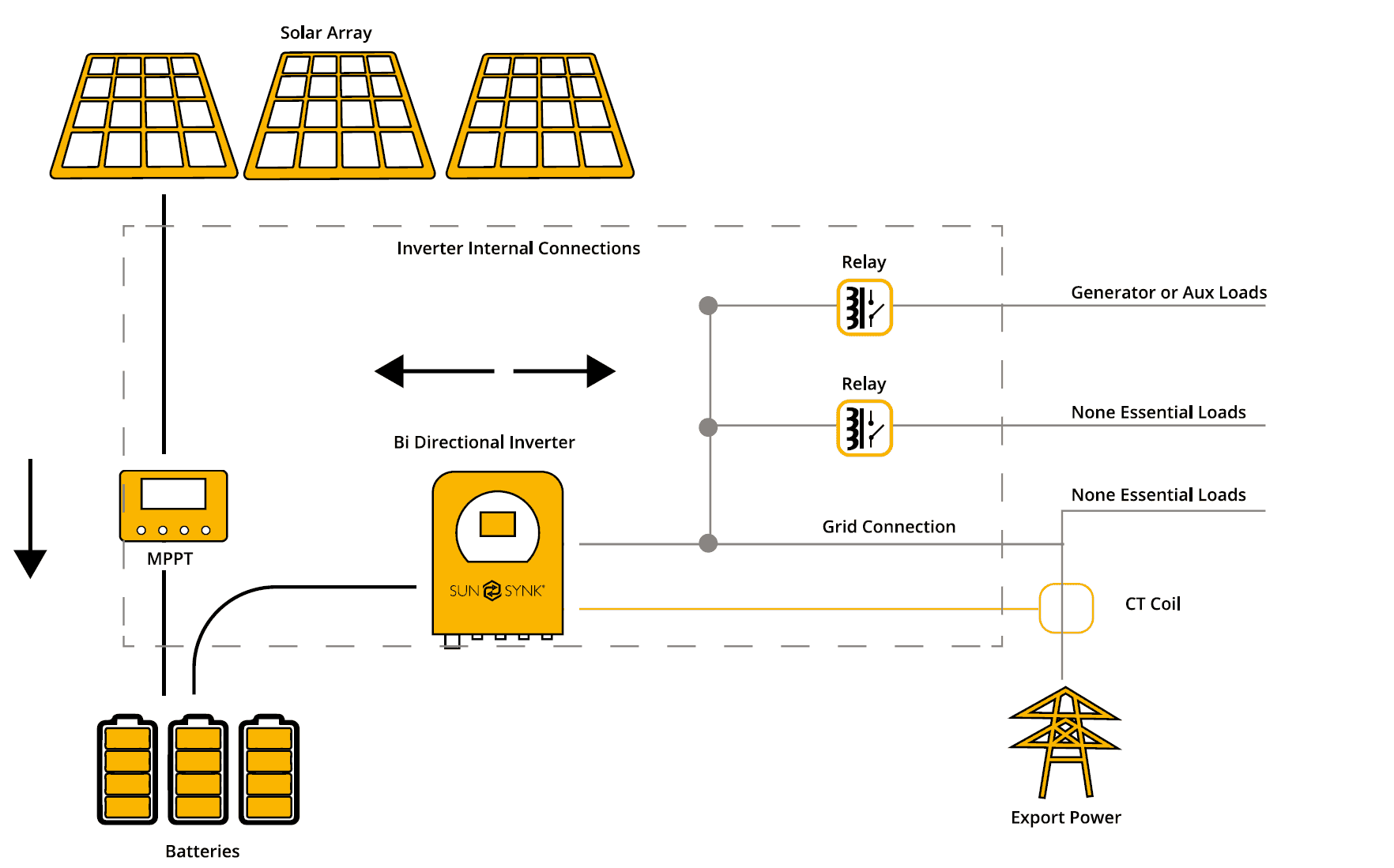

• Advanced Grid Integration: Fully programmable power export with automatic switching between Grid-Tied and Off-Grid mode

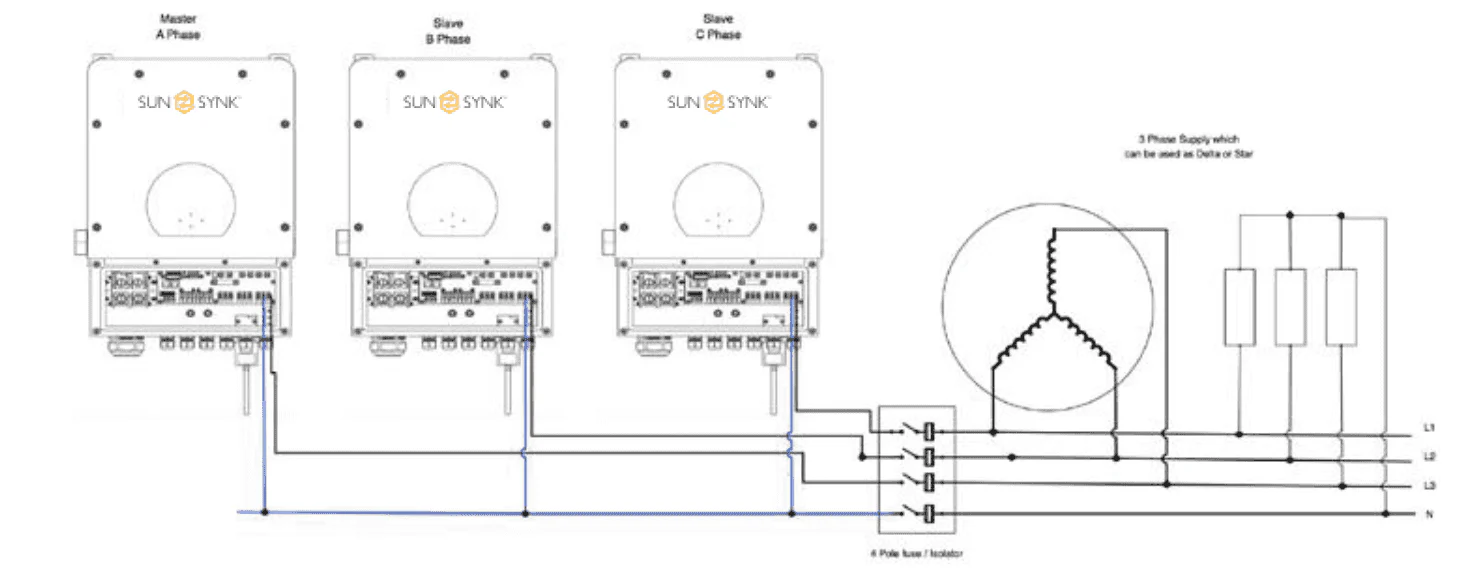

• Scalable System: Up to 16 units can be paralleled with the same firmware for larger installations

• IP65 Rated & Anti-Islanding Protection: Ensures durability and safety in all conditions

• Euro Efficiency: 99.9% for maximum energy utilisation

---

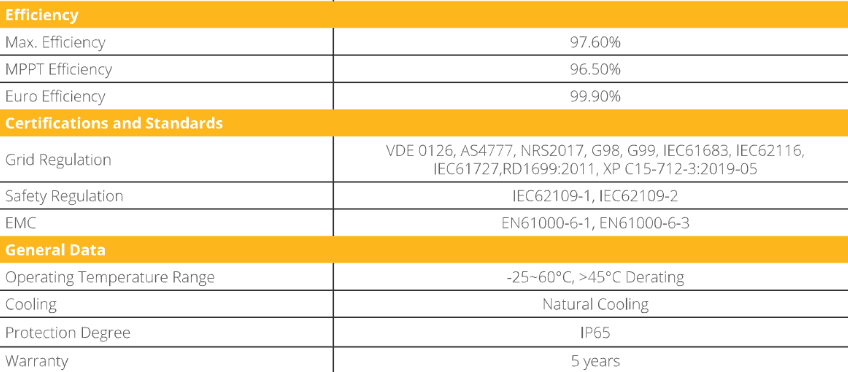

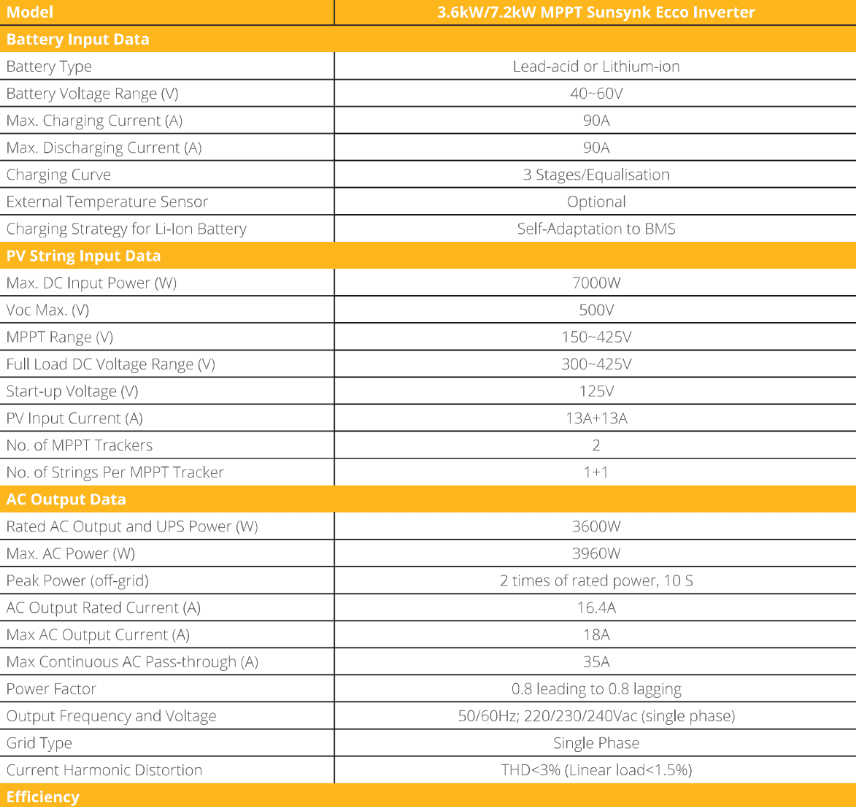

Technical Specifications

• Rated Power: 3,600 W

• Min MPPT Voltage: 125 V | Max MPPT Voltage: 500 V

• DC Startup Voltage: 150 V | DC Shutdown Voltage: 125 V

• Max Input Voltage: 500 V | Max DC Power: 7,000 W

• Max AC Power (5 Minutes): 3,960 W | Surge AC Power (1 Second): 5,400 W

• Max DC Current: 22 A | Max DC Inputs: 2

• Connector: MC4 | Integrated DC Switch: Yes

• MPPT Quantity: 2 | Transformer: None

• Warranty: 5 years

---

Sunsynk App & Data Logger

• Remote Control: Change all inverter settings from anywhere in the world

• Real-Time Monitoring: Monitor energy production, consumption, and battery status instantly

• Push Notifications: Receive alerts for power cuts, generator use, or battery activity

• Live Stats & Reporting: Access detailed energy statistics, generate custom reports, and track savings

• Octopus Agile & Flux Integration: Charge batteries at the cheapest rates and discharge when electricity prices are high, optimising savings

Start using the Sunsynk Logger app via the Apple App Store or Google Play Store.

---

Why Choose the SunSynk 3.6kW ECCO Hybrid Inverter?

• Optimises energy production for both self-consumption and export

• Advanced safety features and programmable settings

• Supports smart grid integration for cost savings

• Scalable and flexible for residential or commercial installations
