Sunsynk 5kW ECCO Hybrid Inverter – Efficient Solar & Backup Power Management

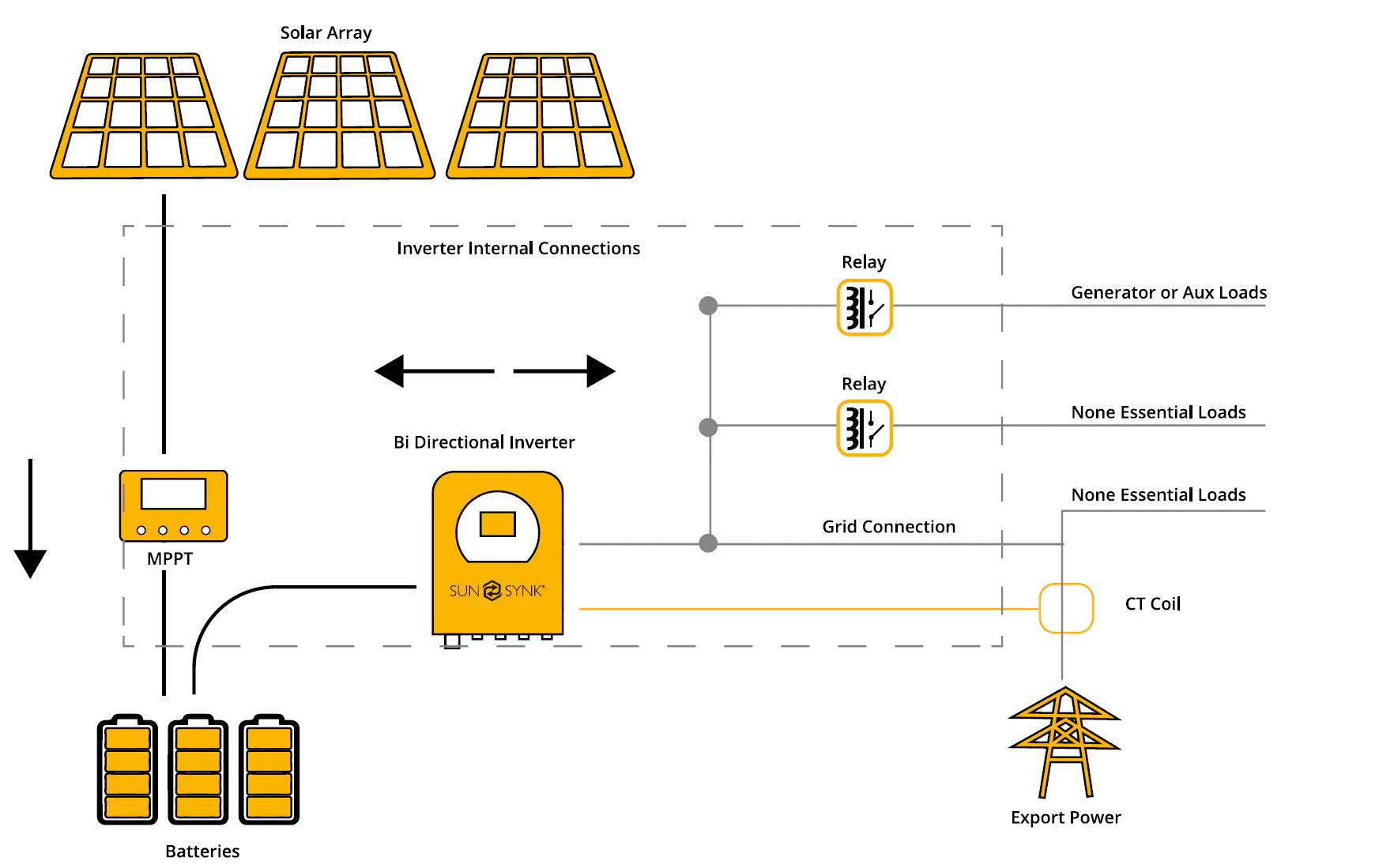

The Sunsynk 5kW ECCO Hybrid Inverter is the perfect solution for managing energy from multiple sources, including solar, the main electrical grid, and generators. Compact yet powerful, it brings all the capabilities of the previous Sunsynk model in a smaller, smarter package.

---

Key Features

Dual MPPT Design

• Optimises solar energy harvesting with two independent Maximum Power Point Trackers.

Battery Compatibility

• Works seamlessly with most Lithium-ion (LiFePO4) and Lead Acid batteries.

Remote Monitoring via Mobile App

• Real-time monitoring and control using the Sunsynk or SolarMan App.

Durable & Weatherproof

• IP65-rated for reliable outdoor installation.

Automatic Switching

• Instantly switches between grid-tied and off-grid modes for uninterrupted power.

Zero Export Function

• Prevents excess solar energy from being exported to the grid.

Expandable & Scalable

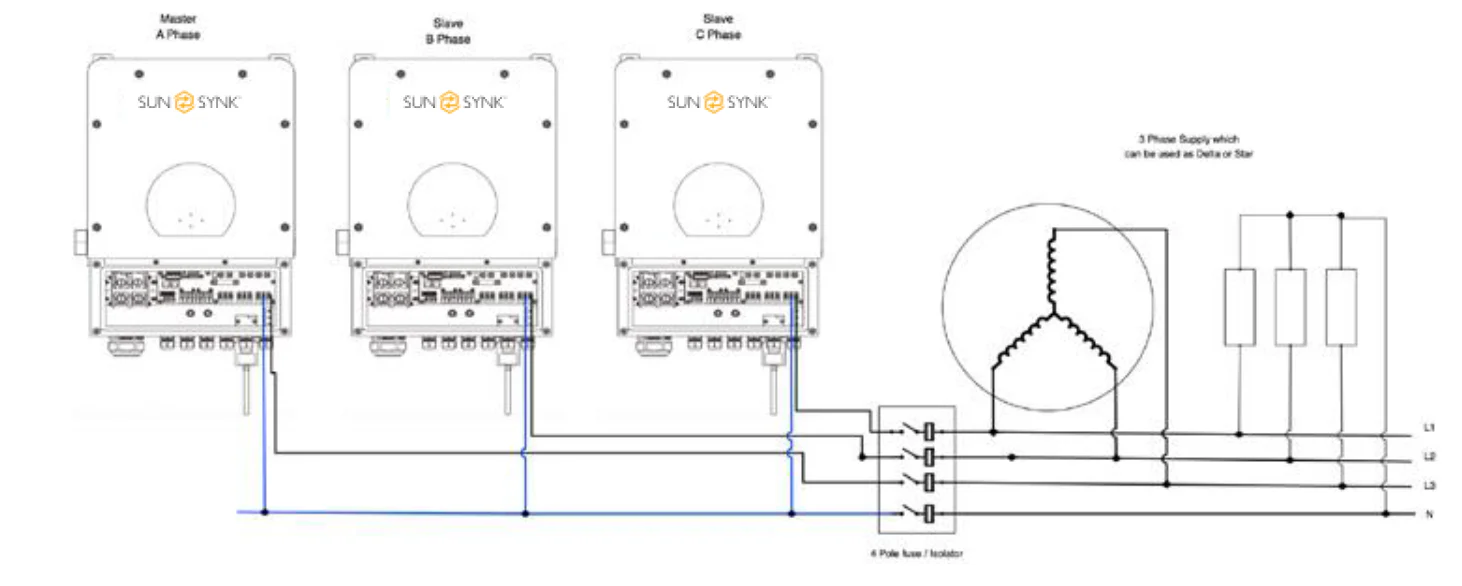

• Up to 16 units with the same firmware can be connected in parallel.

Load Management

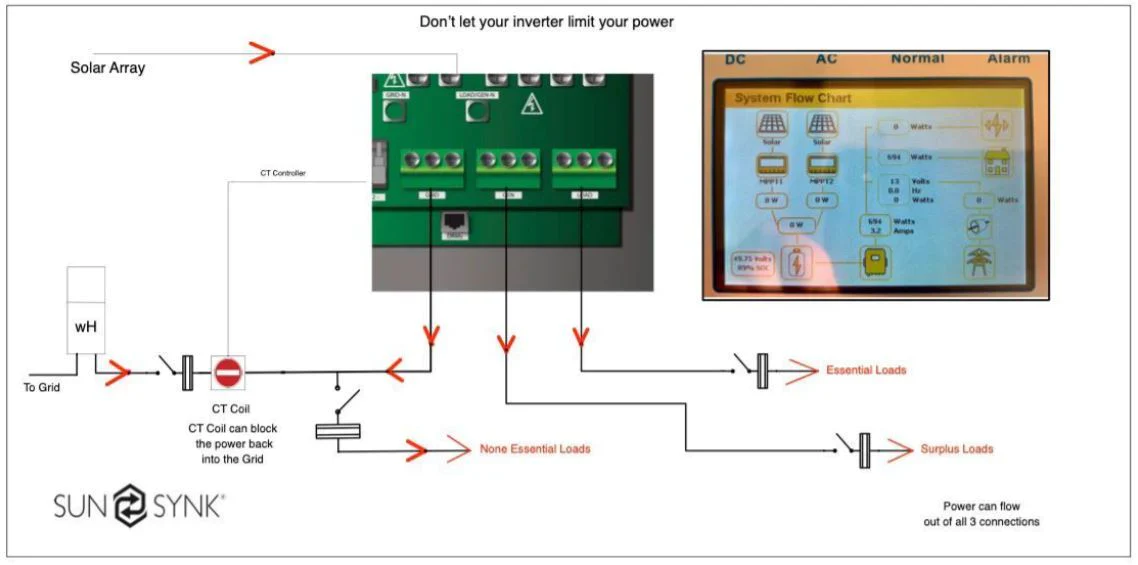

• Essential and non-essential load outputs for customised energy prioritisation.

Included Accessories

• Comes with Wi-Fi data logger and current transformer (CT) for complete system monitoring.

Warranty

• 10-year LiFePO4 battery warranty and 5-year inverter warranty.

---

Technical Specifications

• Rated Power: 5,000 W

• Minimum MPPT Voltage: 125 V

• Maximum MPPT Voltage: 425 V

• DC Startup/Shutdown Voltage: 150 V

• Maximum Input Voltage: 500 V

• Maximum DC Power: 6,500 W

• Maximum AC Power (5 minutes): 5,500 W

• Surge AC Power (1 second): 11,000 W

• Maximum DC Current: 22 A

• Maximum DC Inputs: 2

• Connector Type: MC4

• Euro Efficiency: 96.5 %

• Transformer: None

• MPPT Quantity: 2

• Integrated DC Switch: Yes

Dyness PowerBox G2 Residential Energy Storage

The Dyness PowerBox G2 is a high-performance, low-voltage battery system designed for residential energy storage. Its slim 16.5cm design makes it ideal for installations in tight spaces while delivering reliable, scalable energy storage. Supporting up to 50 parallel units, the PowerBox G2 can provide 10.24 kWh to 512 kWh of energy coverage, making it perfect for homes of all sizes.

Key Features

Scalable and Flexible

• Flexible Expansion: Connect up to 50 units in parallel

• Energy Capacity: 10.24 kWh to 512 kWh

Advanced Safety and Reliability

• Ultra-Safe Operation: Smart fire suppression system with 5-second response and automatic pressure relief

• Long-Term Durability: Uses LFP cells for maximum cycle life and reliability

• IP65 Protection: Resistant to dust and water ingress

Performance and Environmental Adaptability

• Automatic Self-Heating: Charges down to -20°C and operates between -20°C to 55°C

• Strong Environmental Adaptability: Reliable performance in diverse climates

Warranty

• 10-Year Manufacturer Warranty for peace of mind

Technical Specifications

Battery Performance

• Nominal Energy: 10,240 Wh

• Depth of Discharge: 95%

• Voltage: 51 V

Power Ratings

• Continuous Discharge (Normal Use): 5,120 W

• Maximum Discharge Rate (5 Minutes): 10,240 W

• Surge Discharge Rate (15 Seconds): 10,240 W

• Maximum Charge Rate: 3,120 W

Physical Specifications

• Weight: 98 kg

• Slim Design: 16.5 cm width for tight installation spaces

---

Product Performance

• Multi-function inverter/charger/solar system for seamless power management.

• Uninterruptible power support combining inverter, solar charger, and battery in one compact unit.

• Configurable LCD display to manage voltage, charging current, and AC/solar charge priorities.

• Compatible with mains voltage or generator power with auto-restart after AC recovery.

• Flexible battery capacity options with standard or external battery packages.

• Wide PV input range with MPPT controller converts solar energy directly to loads.

• Integrated design allows easy transportation and installation.

• Built-in overload, over-temperature, and short-circuit protection.

• CE, RoHS, VDE, MSDS, UN38.3, IEC approved for international standards.

---

Safety & Convenience

• LiFePO4 Battery Safety: Stable and secure with triple protection at module, pack, and system level.

• Simple Installation: Modular design, portable by a single person, and space-saving footprint of 0.15 sqm.

• Cloud & App Integration: Full control via mobile app from anywhere, anytime. Start by visiting the Apple App Store, or Google play store and searching "Sunsynk Logger". Alternatively, open your preferred web browser and search www.sunsynk.net.

• Real-Time Notifications & Monitoring: Instant alerts for power cuts, generator use, or battery status.

• Remote Settings & Updates: Modify inverter settings remotely, access OS upgrades, and optimise energy use.

• Live Stats & Reporting: Track energy usage, generate reports, and optimise system efficiency to save on bills.

• Smart Integration: Compatible with Octopus Agile, Flux, and Go for dynamic energy pricing and cost savings.

---

Why Choose Sunsynk ECCO 5kW Hybrid Inverter?

The Sunsynk ECCO Hybrid Inverter offers a compact, reliable, and intelligent solution for homeowners and businesses. Its hybrid capabilities allow seamless energy management, while mobile app monitoring and smart integration help you save money, reduce grid reliance, and maximise renewable energy usage.
