• 8 x Solar panels, any solar panels can be selected from our website of up to £70+vat cost price typically 450-525W
• Dyness 10.24kwh Powerbox G2
• 1 x SunSynk On & Off grid 3.6kW AC ECCO hybrid Inverter.
• 8 x Mounting equipment for standard pitched roof in portrait orientation. For Alternative mounting requirements please request a quote.
• 1 x Electrics pack including solar cable, MC4's, pre-terminated cable, AC & DC Isolators, bi-directional meter.

SunSynk 3.6kW AC ECCO 7kWp Hybrid Inverter with 10.24kWh Dyness Powerbox LiFePO4 Battery

Upgrade your home or small business energy system with the SunSynk 3.6kW AC ECCO 7kWp Hybrid Inverter, a next-generation hybrid solution designed to maximise solar self-consumption, reduce electricity bills, and provide uninterrupted power supply. This inverter is compatible with both Lithium-ion and Lead Acid batteries, making it ideal for flexible and scalable energy storage.

Key Features of SunSynk 3.6kW Hybrid Inverter

• Dual MPPT Design: Optimises solar energy harvesting with up to 7kW MPPT input.

• High Efficiency: Euro Efficiency of 99.9% ensures minimal energy loss.

• Battery Compatibility: Supports Lithium-ion and Lead Acid batteries up to 50kWh.

• IP65 Rated: Weather-resistant for outdoor installation.

• Anti-Islanding Protection: Automatically disconnects from the grid during power outages.

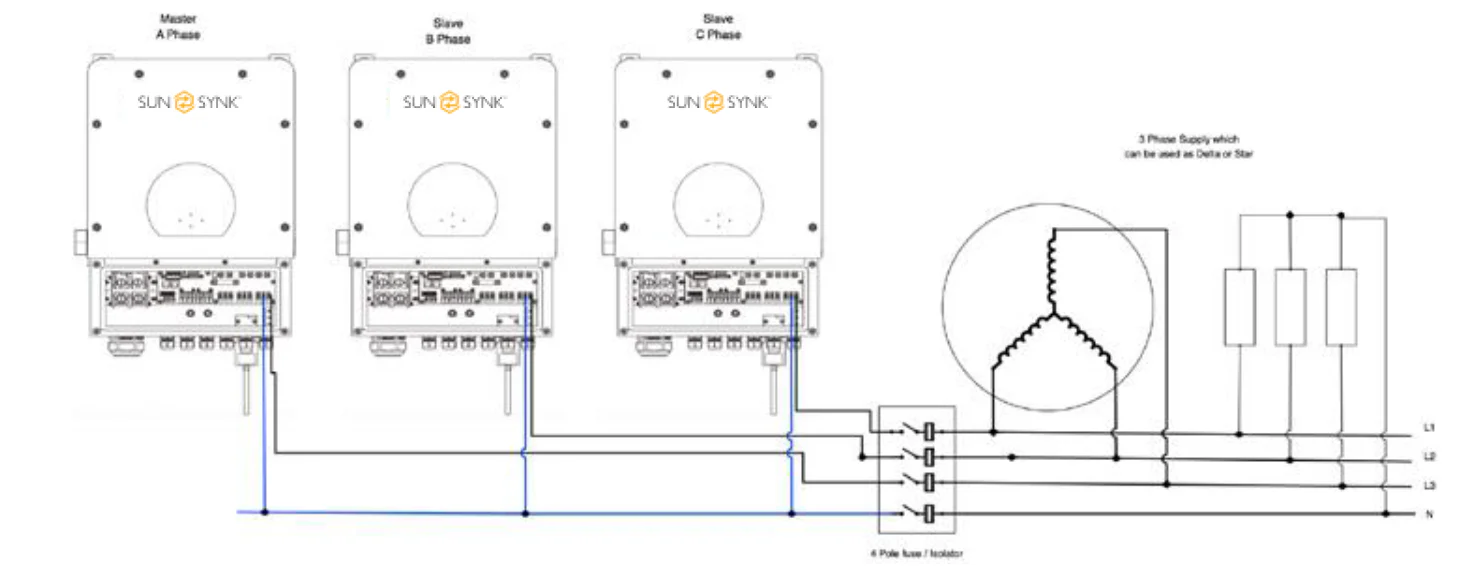

• Paralleling Capability: Connect up to 16 units with the same firmware for expanded systems.

• Programmable Power Export: Customisable energy export to the grid or loads.

• Remote Monitoring & Control: Full system management via SunSynk App. Start by visiting the Apple App Store, or Google play store and searching "Sunsynk Logger". Alternatively, open your prefered web browser and search www.sunsynk.net.

Technical Specifications

Inverter Specs

• Rated Power: 3,600 W

• Maximum DC Power: 7,000 W

• Maximum AC Power (5 min): 3,960 W

• Surge AC Power (1 sec): 5,400 W

• DC Inputs: 2, Max DC Current: 22 A

• MPPT Quantity: 2

• DC Voltage Range: 125–500 V

• Connector Type: MC4

• Transformerless Design

• Warranty: 5 years

Dyness PowerBox G2 Residential Energy Storage

The Dyness PowerBox G2 is a high-performance, low-voltage battery system designed for residential energy storage. Its slim 16.5cm design makes it ideal for installations in tight spaces while delivering reliable, scalable energy storage. Supporting up to 50 parallel units, the PowerBox G2 can provide 10.24 kWh to 512 kWh of energy coverage, making it perfect for homes of all sizes.

Key Features

Scalable and Flexible

• Flexible Expansion: Connect up to 50 units in parallel

• Energy Capacity: 10.24 kWh to 512 kWh

Advanced Safety and Reliability

• Ultra-Safe Operation: Smart fire suppression system with 5-second response and automatic pressure relief

• Long-Term Durability: Uses LFP cells for maximum cycle life and reliability

• IP65 Protection: Resistant to dust and water ingress

Performance and Environmental Adaptability

• Automatic Self-Heating: Charges down to -20°C and operates between -20°C to 55°C

• Strong Environmental Adaptability: Reliable performance in diverse climates

Warranty

• 10-Year Manufacturer Warranty for peace of mind

Technical Specifications

Battery Performance

• Nominal Energy: 10,240 Wh

• Depth of Discharge: 95%

• Voltage: 51 V

Power Ratings

• Continuous Discharge (Normal Use): 5,120 W

• Maximum Discharge Rate (5 Minutes): 10,240 W

• Surge Discharge Rate (15 Seconds): 10,240 W

• Maximum Charge Rate: 3,120 W

Physical Specifications

• Weight: 98 kg

• Slim Design: 16.5 cm width for tight installation spaces

Benefits of SunSynk Hybrid System

• All-in-One Energy Solution: Combines inverter, solar charger, and battery for uninterruptible power.

• Flexible Configuration: Compatible with standard or external battery packages, expandable as needed.

• Safety & Certification: CE, RoHS, VDE, MSDS, UN38.3, IEC approved.

• Remote Monitoring & Smart Notifications: Receive real-time alerts for power cuts, battery status, or generator use.

• Energy Cost Optimisation: Integrated with Octopus Agile, Flux & Go tariffs to charge at low-cost times and discharge when electricity rates are high.

• Compact & Easy Installation: Modular design allows single-person handling and space-saving installation.

What’s Included

• 1 x SunSynk 3.6kW AC ECCO 7kWp Hybrid Inverter

• Dyness 10.24kWh Powerbox Battery

• 8 x Mounting Equipment for Standard Pitched Roof (portrait orientation)

• 1 x Electrics Pack (solar cable, MC4 connectors, pre-terminated cable, AC & DC isolators, bi-directional meter)

Why Choose SunSynk?

With real-time monitoring, remote configuration, and intelligent energy management, the SunSynk 3.6kW AC ECCO Hybrid Inverter offers peace of mind, efficiency, and long-term cost savings. It’s perfect for homeowners or businesses aiming to maximise renewable energy usage and achieve energy independence.
