SunSynk 8kW Hybrid Inverter & Dyness10.24kWh Powerbox Battery Storage Kit

Complete solar power solution with inverter, battery, mounting equipment, and full electrical pack

🌞 Reliable Hybrid Solar Power System

The SunSynk 8kW ECCO Hybrid Inverter paired with the Dyness 10.24kWh LiFePO4 battery provides a powerful and flexible energy storage system for residential and small commercial use. This package enables you to manage power efficiently from solar panels, the grid, or a backup generator, while storing excess energy in a long-lasting lithium battery for when you need it most.

📦 What’s Included in the Kit

• 1 x SunSynk On & Off-Grid 8kW AC ECCO Hybrid Inverter

• 18 x Solar Panels – choose from our website up to £70+VAT per panel (typically 450–525W each).
  Upgrade available to any premium panels – simply pay the price difference.

• Dyness 10.24kWh LiFePO4 Battery (10-year warranty, 6,000 cycles, 90% DOD)

• 18 x Mounting Equipment for standard pitched roof in portrait orientation (alternative mounting available on request)

• 1 x Electrics Pack including:

  • Solar DC cable & pre-terminated connections

  • MC4 connectors

  • AC & DC isolators

  • Bi-directional smart meter

⚡ SunSynk 8kW Hybrid Inverter – Key Features

• Dual MPPT design for maximum solar efficiency

• Works with most Lithium-ion & Lead Acid batteries

• Automatic switchover between grid-tied and off-grid mode

• Zero export function for grid compliance

• Up to 16 units in parallel with same firmware

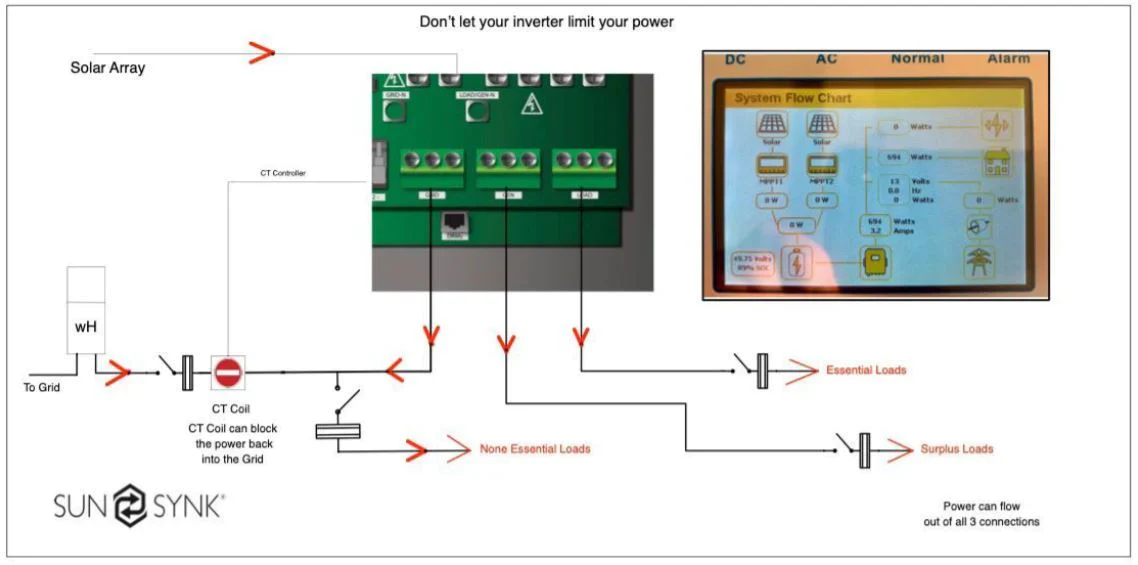

• Essential & non-essential loads outputs for power prioritisation

• Built-in Wi-Fi logger with CT clamp

• IP65-rated – weather-resistant for indoor/outdoor installation

• Compatible with SolarMan App for real-time monitoring

Inverter Technical Specifications

• Rated Power: 8,000W

• Max DC Power: 10,400W

• MPPT Voltage Range: 125–425V

• Max Input Voltage: 500V

• Max DC Current: 44A

• Euro Efficiency: 96.5%

• Weight: 25kg

• Integrated DC Switch: Yes

Dyness PowerBox G2 Residential Energy Storage

The Dyness PowerBox G2 is a high-performance, low-voltage battery system designed for residential energy storage. Its slim 16.5cm design makes it ideal for installations in tight spaces while delivering reliable, scalable energy storage. Supporting up to 50 parallel units, the PowerBox G2 can provide 10.24 kWh to 512 kWh of energy coverage, making it perfect for homes of all sizes.

Key Features

Scalable and Flexible

• Flexible Expansion: Connect up to 50 units in parallel

• Energy Capacity: 10.24 kWh to 512 kWh

Advanced Safety and Reliability

• Ultra-Safe Operation: Smart fire suppression system with 5-second response and automatic pressure relief

• Long-Term Durability: Uses LFP cells for maximum cycle life and reliability

• IP65 Protection: Resistant to dust and water ingress

Performance and Environmental Adaptability

• Automatic Self-Heating: Charges down to -20°C and operates between -20°C to 55°C

• Strong Environmental Adaptability: Reliable performance in diverse climates

Warranty

• 10-Year Manufacturer Warranty for peace of mind

Technical Specifications

Battery Performance

• Nominal Energy: 10,240 Wh

• Depth of Discharge: 95%

• Voltage: 51 V

Power Ratings

• Continuous Discharge (Normal Use): 5,120 W

• Maximum Discharge Rate (5 Minutes): 10,240 W

• Surge Discharge Rate (15 Seconds): 10,240 W

• Maximum Charge Rate: 3,120 W

Physical Specifications

• Weight: 98 kg

• Slim Design: 16.5 cm width for tight installation spaces

✅ Applications

• Residential solar storage

• Off-grid or hybrid energy systems

• Small business backup power

• Energy cost savings with peak-shaving and self-consumption

🔒 Warranty & Support

• 10-Year Battery Warranty

• 5-Year Inverter Warranty

• UK technical support available

👉 This kit gives customers a complete renewable energy solution — inverter, storage, cabling, isolators, and mounting gear included.
