SunSynk 8kW Hybrid Inverter & Dyness 10.24kWh LiFePO4 Battery Storage Kit

Complete solar power solution with inverter, battery, roof mounting kit, and electrical pack

🌞 Reliable Hybrid Solar Energy System

The SunSynk 8kW ECCO Hybrid Inverter, paired with the Dyness 10.24kWh LiFePO4 battery, delivers a powerful, flexible and scalable renewable energy system. This complete package enables you to manage power seamlessly from solar panels, the main grid, or a backup generator, while storing excess energy for when you need it most.

📦 What’s Included in the Kit

• 1 x SunSynk 8kW ECCO Hybrid Inverter (On & Off-Grid)

• 16 x Solar Panels – choose from our website up to £70+VAT per panel (typically 450–525W each).
  Upgrade available to any premium panels – simply pay the price difference.

• Dyness 10.24kWh LiFePO4 Battery

• 16 x Mounting Equipment for pitched roof (portrait orientation)

• 1 x Electrics Pack including:

  • Solar DC cables (pre-terminated)

  • MC4 connectors

  • AC & DC isolators

  • Bi-directional smart meter

(Alternative mounting options available on request)

⚡ SunSynk 8kW Hybrid Inverter – Features

• Dual MPPT design for maximum efficiency

• Compatible with Lithium-ion & Lead Acid batteries

• Automatic switchover between on-grid and off-grid

• Zero export function for grid compliance

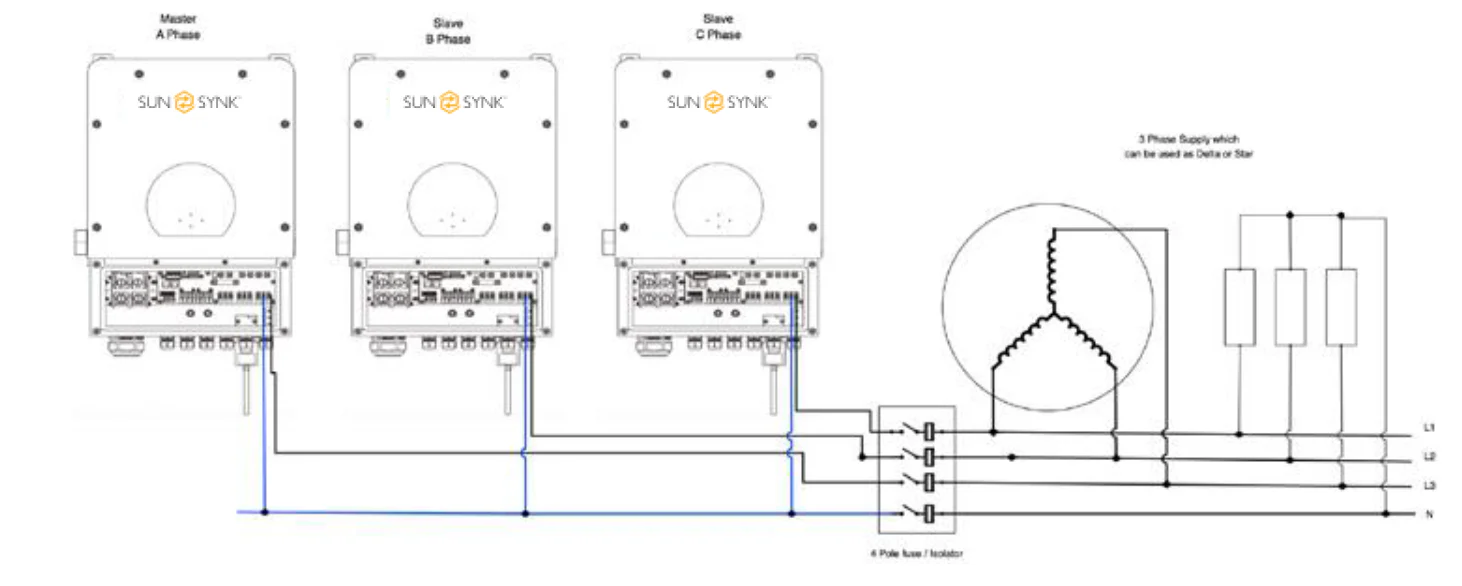

• Up to 16 units in parallel with matching firmware

• Dedicated outputs for essential & non-essential loads

• Comes with Wi-Fi logger and CT clamp

• IP65-rated for indoor or outdoor installation

• Compatible with SolarMan App for real-time monitoring

Inverter Technical Specifications

• Model: Sunsynk-8.8-K-SG01LP1 ECCO

• Rated Power: 8,000 W

• Max DC Power: 10,400 W

• MPPT Voltage Range: 125–425 V

• Max Input Voltage: 500 V

• Startup/Shutdown Voltage: 150 V

• Max DC Current: 44 A

• MPPT Inputs: 2

• Euro Efficiency: 96.5%

• Weight: 25 kg

• Integrated DC Switch: Yes

Dyness PowerBox G2 Residential Energy Storage

The Dyness PowerBox G2 is a high-performance, low-voltage battery system designed for residential energy storage. Its slim 16.5cm design makes it ideal for installations in tight spaces while delivering reliable, scalable energy storage. Supporting up to 50 parallel units, the PowerBox G2 can provide 10.24 kWh to 512 kWh of energy coverage, making it perfect for homes of all sizes.

Key Features

Scalable and Flexible

• Flexible Expansion: Connect up to 50 units in parallel

• Energy Capacity: 10.24 kWh to 512 kWh

Advanced Safety and Reliability

• Ultra-Safe Operation: Smart fire suppression system with 5-second response and automatic pressure relief

• Long-Term Durability: Uses LFP cells for maximum cycle life and reliability

• IP65 Protection: Resistant to dust and water ingress

Performance and Environmental Adaptability

• Automatic Self-Heating: Charges down to -20°C and operates between -20°C to 55°C

• Strong Environmental Adaptability: Reliable performance in diverse climates

Warranty

• 10-Year Manufacturer Warranty for peace of mind

Technical Specifications

Battery Performance

• Nominal Energy: 10,240 Wh

• Depth of Discharge: 95%

• Voltage: 51 V

Power Ratings

• Continuous Discharge (Normal Use): 5,120 W

• Maximum Discharge Rate (5 Minutes): 10,240 W

• Surge Discharge Rate (15 Seconds): 10,240 W

• Maximum Charge Rate: 3,120 W

Physical Specifications

• Weight: 98 kg

• Slim Design: 16.5 cm width for tight installation spaces

📱 Monitoring & Control via Sunsynk App

• Real-time notifications (e.g., power cuts, generator or battery use)

• Remote settings control – adjust parameters anywhere with internet access

• Firmware updates – keep your system up-to-date remotely

• Live stats & monitoring – track energy usage and optimise performance

• Custom reports & graphs – understand savings and efficiency

✅ Applications

• Residential solar energy storage

• Off-grid or hybrid setups

• Small business backup power

• Energy cost reduction through peak shaving & self-consumption

🔒 Warranty

• 10-Year Battery Warranty

• 5-Year Inverter Warranty

👉 This kit is a complete solar energy solution, giving you inverter, storage, mounting gear, and electrical components – everything you need for a reliable, future-ready renewable energy system.
